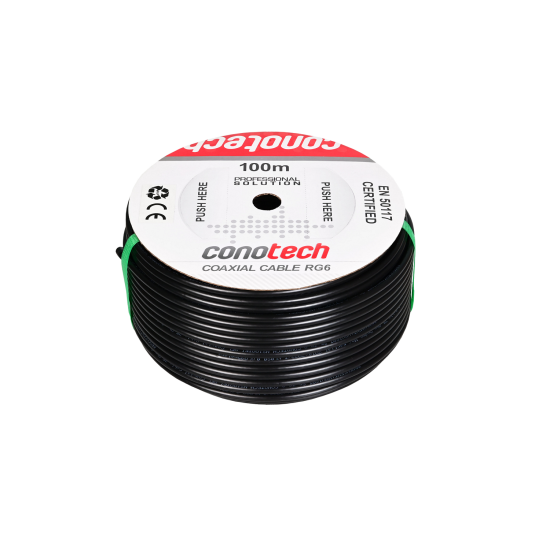

Conotech Coaxial Cable Ns100Tri 100M Gel

General specification:  Type: RG-6 Inner conductor: copper (CU), ø 1.00 ± 0.02 mm Dielectric: 4.8 ± 0.02mm PE physically foamed with nitrogen (N)  First screening: Al/PET foil, thickness 0.04 mm Braiding: 96 wires x 0.12mm with protected gel, AL wire  Second screening: Al/PET foil, thickness 0.04 mm  Outer diameter PE: 6,8 mm, black polyethylene Characteristic impedance: 75± 3 Ohm  Shielding class: A Working temperature: -20 C ÷ +70 C Laying temperature: 0 C ÷ +70 C Capacitance: 50,3± 2 pF/m  Optical braiding coverage: >= 90%  Implementation: outdoor and underground installations Compliance with standards: EN 50117 Klasa A, 2011/65/EU;2015/863 (RoHS 3) Length: 100 m  Brand: CONOTECH
