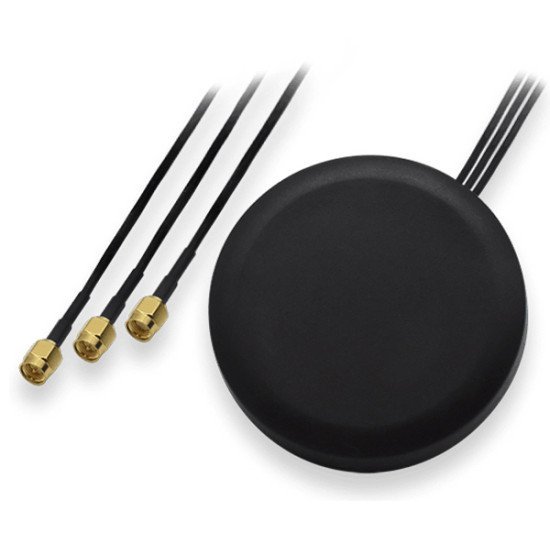

Teltonika Κεραία Combo Siso Mobile/Gnss/Wi-Fi Pr1Kcs28, Sma, Ip67

TELTONIKA κεραία combo SISO Mobile/GNSS/Wi-Fi PR1KCS28, SMA, IP67

Combo κεραία οροφής GNSS, Wi-Fi και LTE της Teltonika, κατάλληλη για εξωτερική χρήση χάρη στον βαθμό προστασίας IP67. Συμβατό με τα router UTX09, RUT230, RUT240, RUT900, RUT950, RUT955, TRB140, TRB142, TRB145.

Τεχνικά Χαρακτηριστικά
GNSS Antenna
Frequency Range: 1575.42-1610 MHz
Polarization: RHCP
Impedance: 50 Ω
LNA Gain: 28 dB
LNA Noise Figure: < 1.5 dB
Supply Voltage: 2.7-5 ±0.5 VDC
Current Consumption: < 15 mA
LNA V.S.W.R: <1.65
Connector: SMA Male

LTE Antenna
Frequency Range: 850/900/1800/1900/2170 MHz
Bandwidth: ±90/280 MHz
Polarization: Vertical
Gain: 3.5 dBi
V.S.W.R:: <1.5:1
Impedance: 50 Ω
Connector: SMA Male

WiFi Antenna
Frequency Range:: 2350-2500 MHz
Bandwidth: ±100 MHz
Polarization: Vertical
Gain: 2.5 dBi
V.S.W.R:: <1.5:1
Impedance: 50 Ω
Connector: RP SMA Male

Mechanical/Environmental
Mounting Method: Screw
Radome Ingress Protection rating: IP67
Radome Material: ABS
Weight: <250g
Housing Dimensions: Φ 80x15 mm
Cable: 3x RG174, 3000 mm
